Key Monitoring Metrics of TiKV

If you use TiDB Ansible to deploy the TiDB cluster, the monitoring system is deployed at the same time. For more information, see Overview of the Monitoring Framework.

The Grafana dashboard is divided into a series of sub dashboards which include Overview, PD, TiDB, TiKV, Node_exporter, Disk Performance, and so on. A lot of metrics are there to help you diagnose.

You can get an overview of the component TiKV status from the TiKV dashboard, where the key metrics are displayed. This document provides a detailed description of these key metrics.

Key metrics description

To understand the key metrics displayed on the Overview dashboard, check the following table:

Service	Panel name	Description	Normal range
Cluster	Store size	The storage size of each TiKV instance
Cluster	Available size	The available capacity size of each TiKV instance
Cluster	Capacity size	The capacity size of each TiKV instance
Cluster	CPU	The CPU usage of each TiKV instance
Cluster	Memory	The memory usage of each TiKV instance
Cluster	IO utilization	The I/O utilization of each TiKV instance
Cluster	MBps	The total bytes and keys of read and write on each TiKV instance
Cluster	QPS	The QPS of different kinds of commands in each TiKV instance
Cluster	Errps	The total number of the gRPC message failures
Cluster	Leader	The number of leaders on each TiKV instance
Cluster	Region	The number of Regions on each TiKV instance
Errors	Server is busy	It contains some kinds of events such as write stall, channel full, scheduler busy, and coprocessor full, which will make the TiKV instance unavailable temporarily.
Errors	Server report failures	The total number of reporting failure messages	It should be `0` in normal case.
Errors	Raftstore error	The number of different raftstore errors on each TiKV instance
Errors	Scheduler error	The number of different scheduler errors on each TiKV instance
Errors	Coprocessor error	The number of different coprocessor errors on each TiKV instance
Errors	gRPC message error	The number of different gRPC message errors on each TiKV instance
Errors	Leader drop	The count of dropped leader in each TiKV instance
Errors	Leader missing	The count of missing leader in each TiKV instance
Server	Leader	The number of leaders on each TiKV instance
Server	Region	The number of Regions on each TiKV instance
Server	CF size	The total size of each column family
Server	Store size	The storage size of each TiKV instance
Server	Channel full	The total number of channel full errors on each TiKV instance	It should be `0` in normal case.
Server	Server report failures	The total number of reporting failure messages
Server	Region average written keys	The average rate of writing keys to Regions on each TiKV instance
Server	Region average written bytes	The average rate of writing bytes to Regions on each TiKV instance
Server	Active written leaders	The number of active leaders on each TiKV instance
Server	Approximate Region size	The approximate Region size
Raft IO	Apply log duration	The time consumed when Raft applies log
Raft IO	Apply log duration per server	The time consumed when Raft applies log on each TiKV instance
Raft IO	Append log duration	The time consumed when Raft appends log
Raft IO	Append log duration per server	The time consumed when Raft appends log on each TiKV instance
Raft process	Ready handled	The count of different ready type of Raft
Raft process	Process ready duration per server	The time consumed when the peer processes ready in Raft	It should be less than `2s` in `.9999`.
Raft process	Process tick duration per server	The time consumed when the peer processes tick in Raft
Raft process	0.99 Duration of raftstore events	The time consumed by raftstore events in `.99`
Raft message	Sent messages per server	The number of Raft messages sent by each TiKV instance
Raft message	Flush messages per server	The number of Raft messages flushed by each TiKV instance
Raft message	Receive messages per server	The number of Raft messages received by each TiKV instance
Raft message	Messages	The number of different types of Raft messages that are sent
Raft message	Vote	The total number of vote messages that are sent in Raft
Raft message	Raft dropped messages	The number of different types of Raft messages that are dropped
Raft propose	Raft proposals per ready	The proposal count of all Regions in a mio tick
Raft propose	Raft read/write proposals	The total number of different kinds of proposals
Raft propose	Raft read proposals per server	The number of read proposals which are made by each TiKV instance
Raft propose	Raft write proposals per server	The number of write proposals which are made by each TiKV instance
Raft propose	Propose wait duration	The wait time of each proposal
Raft propose	Propose wait duration per server	The wait time of each proposal in each TiKV instance
Raft propose	Raft log speed	The speed that peers propose log
Raft admin	Admin proposals	The number of admin proposals
Raft admin	Admin apply	The number of the processed apply command
Raft admin	Check split	The number of raftstore split check
Raft admin	99.99% Check split duration	The time consumed when running split check in `.9999`
Local reader	Local reader requests	The number of rejections from the local read thread and The number of total requests
Local reader	Local read requests duration	The wait time of local read requests
Local reader	Local read requests batch size	The batch size of local read requests
Storage	Storage command total	The total count of different kinds of commands received
Storage	Storage async request error	The total number of engine asynchronous request errors
Storage	Storage async snapshot duration	The time consumed by processing asynchronous snapshot requests	It should be less than `1s` in `.99`.
Storage	Storage async write duration	The time consumed by processing asynchronous write requests	It should be less than `1s` in `.99`.
Scheduler	Scheduler stage total	The total number of commands on each stage	There should not be lots of errors in a short time.
Scheduler	Scheduler priority commands	The count of different priority commands
Scheduler	Scheduler pending commands	The count of pending commands on each TiKV instance

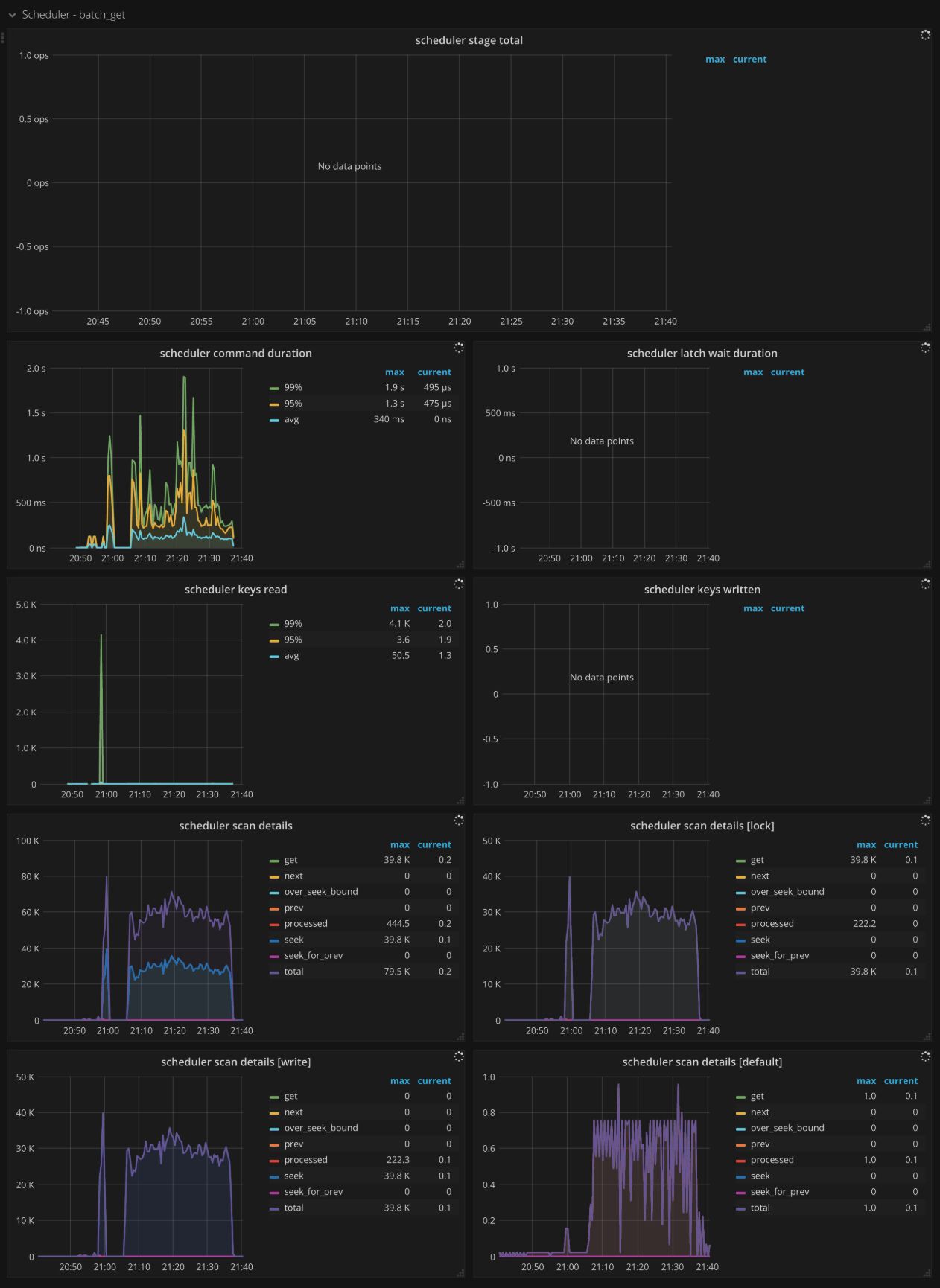

Scheduler - batch_get	Scheduler stage total	The total number of commands on each stage in batch_get command	There should not be lots of errors in a short time.
Scheduler - batch_get	Scheduler command duration	The time consumed when executing batch_get command	It should be less than `1s`.
Scheduler - batch_get	Scheduler latch wait duration	The time which is caused by latch wait in batch_get command	It should be less than `1s`.
Scheduler - batch_get	Scheduler keys read	The count of keys read by a batch_get command
Scheduler - batch_get	Scheduler keys written	The count of keys written by a batch_get command
Scheduler - batch_get	Scheduler scan details	The keys scan details of each CF when executing batch_get command
Scheduler - batch_get	Scheduler scan details [lock]	The keys scan details of lock CF when executing batch_get command
Scheduler - batch_get	Scheduler scan details [write]	The keys scan details of write CF when executing batch_get command
Scheduler - batch_get	Scheduler scan details [default]	The keys scan details of default CF when executing batch_get command

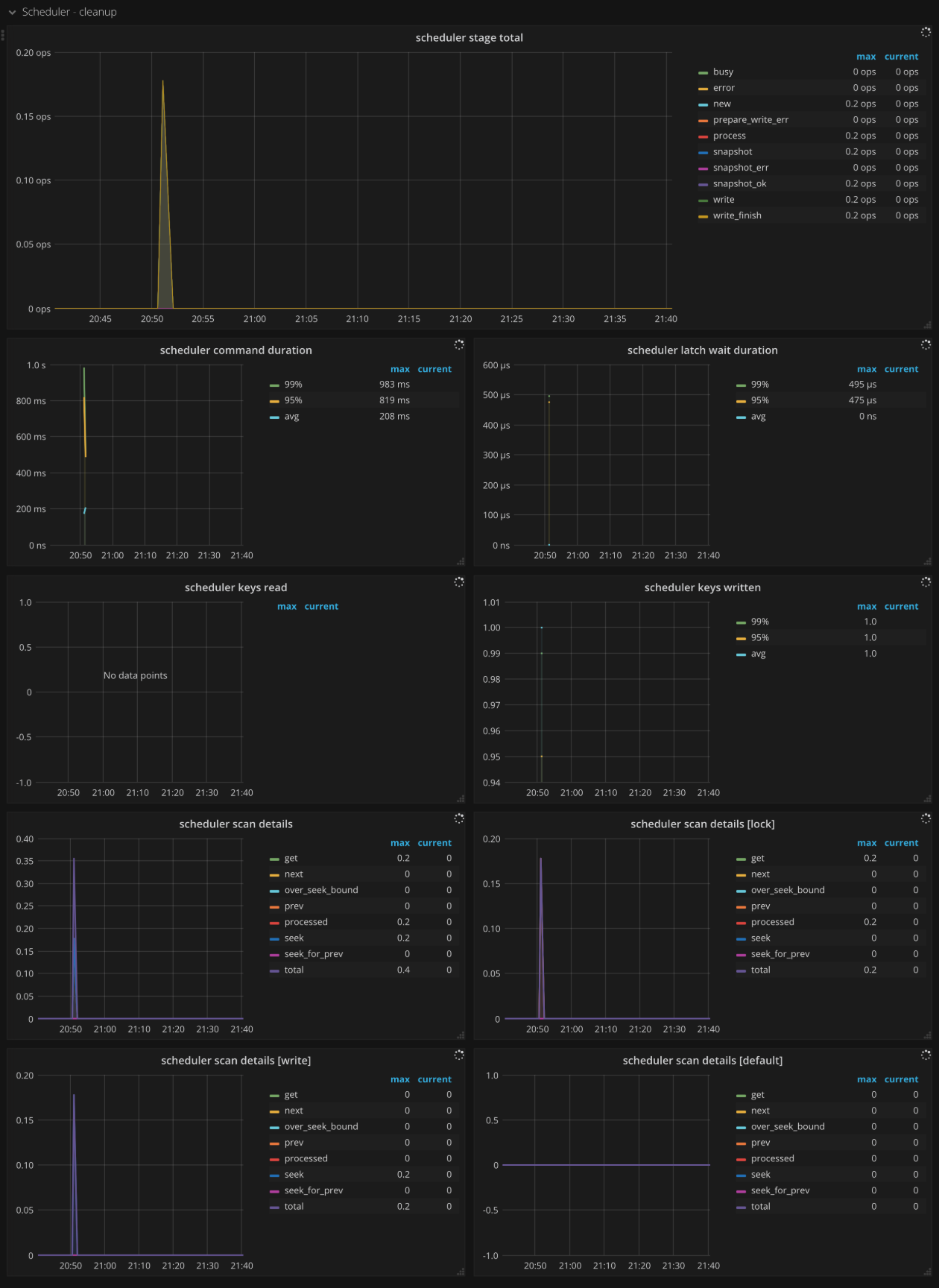

Scheduler - cleanup	Scheduler stage total	The total number of commands on each stage in cleanup command	There should not be lots of errors in a short time.
Scheduler - cleanup	Scheduler command duration	The time consumed when executing cleanup command	It should be less than `1s`.
Scheduler - cleanup	Scheduler latch wait duration	The time which is caused by latch wait in cleanup command	It should be less than `1s`.
Scheduler - cleanup	Scheduler keys read	The count of keys read by a cleanup command
Scheduler - cleanup	Scheduler keys written	The count of keys written by a cleanup command
Scheduler - cleanup	Scheduler scan details	The keys scan details of each CF when executing cleanup command
Scheduler - cleanup	Scheduler scan details [lock]	The keys scan details of lock CF when executing cleanup command
Scheduler - cleanup	Scheduler scan details [write]	The keys scan details of write CF when executing cleanup command
Scheduler - cleanup	Scheduler scan details [default]	The keys scan details of default CF when executing cleanup command
Scheduler - commit	Scheduler stage total	The total number of commands on each stage in commit command	There should not be lots of errors in a short time.
Scheduler - commit	Scheduler command duration	The time consumed when executing commit command	It should be less than `1s`.
Scheduler - commit	Scheduler latch wait duration	The time which is caused by latch wait in commit command	It should be less than `1s`.
Scheduler - commit	Scheduler keys read	The count of keys read by a commit command
Scheduler - commit	Scheduler keys written	The count of keys written by a commit command
Scheduler - commit	Scheduler scan details	The keys scan details of each CF when executing commit command
Scheduler - commit	Scheduler scan details [lock]	The keys scan details of lock CF when executing commit command
Scheduler - commit	Scheduler scan details [write]	The keys scan details of write CF when executing commit command
Scheduler - commit	Scheduler scan details [default]	The keys scan details of default CF when executing commit command
Scheduler - gc	Scheduler stage total	The total number of commands on each stage in gc command	There should not be lots of errors in a short time.
Scheduler - gc	Scheduler command duration	The time consumed when executing gc command	It should be less than `1s`.
Scheduler - gc	Scheduler latch wait duration	The time which is caused by latch wait in gc command	It should be less than `1s`.
Scheduler - gc	Scheduler keys read	The count of keys read by a gc command
Scheduler - gc	Scheduler keys written	The count of keys written by a gc command
Scheduler - gc	Scheduler scan details	The keys scan details of each CF when executing gc command
Scheduler - gc	Scheduler scan details [lock]	The keys scan details of lock CF when executing gc command
Scheduler - gc	Scheduler scan details [write]	The keys scan details of write CF when executing gc command
Scheduler - gc	Scheduler scan details [default]	The keys scan details of default CF when executing gc command
Scheduler - get	Scheduler stage total	The total number of commands on each stage in get command	There should not be lots of errors in a short time.
Scheduler - get	Scheduler command duration	The time consumed when executing get command	It should be less than `1s`.
Scheduler - get	Scheduler latch wait duration	The time which is caused by latch wait in get command	It should be less than `1s`.
Scheduler - get	Scheduler keys read	The count of keys read by a get command
Scheduler - get	Scheduler keys written	The count of keys written by a get command
Scheduler - get	Scheduler scan details	The keys scan details of each CF when executing get command
Scheduler - get	Scheduler scan details [lock]	The keys scan details of lock CF when executing get command
Scheduler - get	Scheduler scan details [write]	The keys scan details of write CF when executing get command
Scheduler - get	Scheduler scan details [default]	The keys scan details of default CF when executing get command
Scheduler - key_mvcc	Scheduler stage total	The total number of commands on each stage in key_mvcc command	There should not be lots of errors in a short time.
Scheduler - key_mvcc	Scheduler command duration	The time consumed when executing key_mvcc command	It should be less than `1s`.
Scheduler - key_mvcc	Scheduler latch wait duration	The time which is caused by latch wait in key_mvcc command	It should be less than `1s`.
Scheduler - key_mvcc	Scheduler keys read	The count of keys read by a key_mvcc command
Scheduler - key_mvcc	Scheduler keys written	The count of keys written by a key_mvcc command
Scheduler - key_mvcc	Scheduler scan details	The keys scan details of each CF when executing key_mvcc command
Scheduler - key_mvcc	Scheduler scan details [lock]	The keys scan details of lock CF when executing key_mvcc command
Scheduler - key_mvcc	Scheduler scan details [write]	The keys scan details of write CF when executing key_mvcc command
Scheduler - key_mvcc	Scheduler scan details [default]	The keys scan details of default CF when executing key_mvcc command
Scheduler - prewrite	Scheduler stage total	The total number of commands on each stage in prewrite command	There should not be lots of errors in a short time.
Scheduler - prewrite	Scheduler command duration	The time consumed when executing prewrite command	It should be less than `1s`.
Scheduler - prewrite	Scheduler latch wait duration	The time which is caused by latch wait in prewrite command	It should be less than `1s`.
Scheduler - prewrite	Scheduler keys read	The count of keys read by a prewrite command
Scheduler - prewrite	Scheduler keys written	The count of keys written by a prewrite command
Scheduler - prewrite	Scheduler scan details	The keys scan details of each CF when executing prewrite command
Scheduler - prewrite	Scheduler scan details [lock]	The keys scan details of lock CF when executing prewrite command
Scheduler - prewrite	Scheduler scan details [write]	The keys scan details of write CF when executing prewrite command
Scheduler - prewrite	Scheduler scan details [default]	The keys scan details of default CF when executing prewrite command
Scheduler - resolve_lock	Scheduler stage total	The total number of commands on each stage in resolve_lock command	There should not be lots of errors in a short time.
Scheduler - resolve_lock	Scheduler command duration	The time consumed when executing resolve_lock command	It should be less than `1s`.
Scheduler - resolve_lock	Scheduler latch wait duration	The time which is caused by latch wait in resolve_lock command	It should be less than `1s`.
Scheduler - resolve_lock	Scheduler keys read	The count of keys read by a resolve_lock command
Scheduler - resolve_lock	Scheduler keys written	The count of keys written by a resolve_lock command
Scheduler - resolve_lock	Scheduler scan details	The keys scan details of each CF when executing resolve_lock command
Scheduler - resolve_lock	Scheduler scan details [lock]	The keys scan details of lock CF when executing resolve_lock command
Scheduler - resolve_lock	Scheduler scan details [write]	The keys scan details of write CF when executing resolve_lock command
Scheduler - resolve_lock	Scheduler scan details [default]	The keys scan details of default CF when executing resolve_lock command
Scheduler - scan	Scheduler stage total	The total number of commands on each stage in scan command	There should not be lots of errors in a short time.
Scheduler - scan	Scheduler command duration	The time consumed when executing scan command	It should be less than `1s`.
Scheduler - scan	Scheduler latch wait duration	The time which is caused by latch wait in scan command	It should be less than `1s`.
Scheduler - scan	Scheduler keys read	The count of keys read by a scan command
Scheduler - scan	Scheduler keys written	The count of keys written by a scan command
Scheduler - scan	Scheduler scan details	The keys scan details of each CF when executing scan command
Scheduler - scan	Scheduler scan details [lock]	The keys scan details of lock CF when executing scan command
Scheduler - scan	Scheduler scan details [write]	The keys scan details of write CF when executing scan command
Scheduler - scan	Scheduler scan details [default]	The keys scan details of default CF when executing scan command
Scheduler - scan_lock	Scheduler stage total	The total number of commands on each stage in scan_lock command	There should not be lots of errors in a short time.
Scheduler - scan_lock	Scheduler command duration	The time consumed when executing scan_lock command	It should be less than `1s`.
Scheduler - scan_lock	Scheduler latch wait duration	The time which is caused by latch wait in scan_lock command	It should be less than `1s`.
Scheduler - scan_lock	Scheduler keys read	The count of keys read by a scan_lock command
Scheduler - scan_lock	Scheduler keys written	The count of keys written by a scan_lock command
Scheduler - scan_lock	Scheduler scan details	The keys scan details of each CF when executing scan_lock command
Scheduler - scan_lock	Scheduler scan details [lock]	The keys scan details of lock CF when executing scan_lock command
Scheduler - scan_lock	Scheduler scan details [write]	The keys scan details of write CF when executing scan_lock command
Scheduler - scan_lock	Scheduler scan details [default]	The keys scan details of default CF when executing scan_lock command
Scheduler - start_ts_mvcc	Scheduler stage total	The total number of commands on each stage in start_ts_mvcc command	There should not be lots of errors in a short time.
Scheduler - start_ts_mvcc	Scheduler command duration	The time consumed when executing start_ts_mvcc command	It should be less than `1s`.
Scheduler - start_ts_mvcc	Scheduler latch wait duration	The time which is caused by latch wait in start_ts_mvcc command	It should be less than `1s`.
Scheduler - start_ts_mvcc	Scheduler keys read	The count of keys read by a start_ts_mvcc command
Scheduler - start_ts_mvcc	Scheduler keys written	The count of keys written by a start_ts_mvcc command
Scheduler - start_ts_mvcc	Scheduler scan details	The keys scan details of each CF when executing start_ts_mvcc command
Scheduler - start_ts_mvcc	Scheduler scan details [lock]	The keys scan details of lock CF when executing start_ts_mvcc command
Scheduler - start_ts_mvcc	Scheduler scan details [write]	The keys scan details of write CF when executing start_ts_mvcc command
Scheduler - start_ts_mvcc	Scheduler scan details [default]	The keys scan details of default CF when executing start_ts_mvcc command
Scheduler - unsafe_destroy_range	Scheduler stage total	The total number of commands on each stage in unsafe_destroy_range command	There should not be lots of errors in a short time.
Scheduler - unsafe_destroy_range	Scheduler command duration	The time consumed when executing unsafe_destroy_range command	It should be less than `1s`.
Scheduler - unsafe_destroy_range	Scheduler latch wait duration	The time which is caused by latch wait in unsafe_destroy_range command	It should be less than `1s`.
Scheduler - unsafe_destroy_range	Scheduler keys read	The count of keys read by a unsafe_destroy_range command
Scheduler - unsafe_destroy_range	Scheduler keys written	The count of keys written by a unsafe_destroy_range command
Scheduler - unsafe_destroy_range	Scheduler scan details	The keys scan details of each CF when executing unsafe_destroy_range command
Scheduler - unsafe_destroy_range	Scheduler scan details [lock]	The keys scan details of lock CF when executing unsafe_destroy_range command
Scheduler - unsafe_destroy_range	Scheduler scan details [write]	The keys scan details of write CF when executing unsafe_destroy_range command
Scheduler - unsafe_destroy_range	Scheduler scan details [default]	The keys scan details of default CF when executing unsafe_destroy_range command
Coprocessor	Request duration	The time consumed when handling coprocessor read requests
Coprocessor	Wait duration	The time consumed when coprocessor requests are wait for being handled	It should be less than `10s` in `.9999`.
Coprocessor	Handle duration	The time consumed when handling coprocessor requests
Coprocessor	95% Request duration by store	The time consumed when handling coprocessor read requests in each TiKV instance
Coprocessor	95% Wait duration by store	The time consumed when coprocessor requests are wait for being handled in each TiKV instance
Coprocessor	95% Handle duration by store	The time consumed when handling coprocessor requests in each TiKV instance
Coprocessor	Request errors	The total number of the push down request errors	There should not be lots of errors in a short time.
Coprocessor	DAG executors	The total number of DAG executors
Coprocessor	Scan keys	The number of keys that each request scans
Coprocessor	Scan details	The scan details for each CF
Coprocessor	Table Scan - Details by CF	The table scan details for each CF
Coprocessor	Index Scan - Details by CF	The index scan details for each CF
Coprocessor	Table Scan - Perf Statistics	The total number of RocksDB internal operations from PerfContext when executing table scan
Coprocessor	Index Scan - Perf Statistics	The total number of RocksDB internal operations from PerfContext when executing index scan
GC	MVCC versions	The number of versions for each key
GC	MVCC delete versions	The number of versions deleted by GC for each key
GC	GC tasks	The count of GC tasks processed by gc_worker
GC	GC tasks Duration	The time consumed when executing GC tasks
GC	GC keys (write CF)	The count of keys in write CF affected during GC
GC	TiDB GC actions result	The TiDB GC action result on Region level
GC	TiDB GC worker actions	The count of TiDB GC worker actions
GC	TiDB GC seconds	The time consumed when TiDB is doing GC
GC	TiDB GC failure	The count of TiDB GC job failure
GC	GC lifetime	The lifetime of TiDB GC
GC	GC interval	The interval of TiDB GC
Snapshot	Rate snapshot message	The rate of Raft snapshot messages sent
Snapshot	99% Handle snapshot duration	The time consumed when handling snapshots
Snapshot	Snapshot state count	The number of snapshots in different states
Snapshot	99.99% Snapshot size	The snapshot size in `.9999`
Snapshot	99.99% Snapshot KV count	The number of KV within a snapshot in `.9999`
Task	Worker handled tasks	The number of tasks handled by worker
Task	Worker pending tasks	Current pending and running tasks of worker	It should be less than `1000`.
Task	FuturePool pending tasks	Current pending and running tasks of future_pool
Thread CPU	Raft store CPU	The CPU utilization of raftstore thread	The CPU usage should be less than `80%`.
Thread CPU	Async apply CPU	The CPU utilization of async apply	The CPU usage should be less than `90%`.
Thread CPU	Scheduler CPU	The CPU utilization of scheduler	The CPU usage should be less than `80%`.
Thread CPU	Scheduler Worker CPU	The CPU utilization of scheduler worker
Thread CPU	Storage ReadPool CPU	The CPU utilization of readpool
Thread CPU	Coprocessor CPU	The CPU utilization of coprocessor
Thread CPU	Snapshot worker CPU	The CPU utilization of snapshot worker
Thread CPU	Split check CPU	The CPU utilization of split check
Thread CPU	RocksDB CPU	The CPU utilization of RocksDB
Thread CPU	gRPC poll CPU	The CPU utilization of gRPC	The CPU usage should be less than `80%`.
RocksDB - kv	Get operations	The count of get operations
RocksDB - kv	Get duration	The time consumed when executing get operation
RocksDB - kv	Seek operations	The count of seek operations
RocksDB - kv	Seek duration	The time consumed when executing seek operation
RocksDB - kv	Write operations	The count of write operations
RocksDB - kv	Write duration	The time consumed when executing write operation
RocksDB - kv	WAL sync operations	The count of WAL sync operations
RocksDB - kv	WAL sync duration	The time consumed when executing WAL sync operation
RocksDB - kv	Compaction operations	The count of compaction and flush operations
RocksDB - kv	Compaction duration	The time consumed when executing compaction and flush operation
RocksDB - kv	SST read duration	The time consumed when reading SST files
RocksDB - kv	Write stall duration	The time which is caused by write stall	It should be `0` in normal case.
RocksDB - kv	Memtable size	The memtable size of each column family
RocksDB - kv	Memtable hit	The hit rate of memtable
RocksDB - kv	Block cache size	The block cache size of each column family
RocksDB - kv	Block cache hit	The hit rate of block cache
RocksDB - kv	Block cache flow	The flow of different kinds of block cache operations
RocksDB - kv	Block cache operations	The count of different kinds of block cache operations
RocksDB - kv	Keys flow	The flow of different kinds of operations on keys
RocksDB - kv	Total keys	The count of keys in each column family
RocksDB - kv	Read flow	The flow of different kinds of read operations
RocksDB - kv	Bytes / Read	The bytes per read
RocksDB - kv	Write flow	The flow of different kinds of write operations
RocksDB - kv	Bytes / Write	The bytes per write
RocksDB - kv	Compaction flow	The flow of different kinds of compaction operations
RocksDB - kv	Compaction pending bytes	The pending bytes when executing compaction
RocksDB - kv	Read amplification	The read amplification in each TiKV instance
RocksDB - kv	Compression ratio	The compression ratio of each level
RocksDB - kv	Number of snapshots	The number of snapshot of each TiKV instance
RocksDB - kv	Oldest snapshots duration	The time that the oldest unreleased snapshot survivals
RocksDB - kv	Number files at each level	The number of SST files for different column families in each level
RocksDB - kv	Ingest SST duration seconds	The time consumed when ingesting SST files
RocksDB - kv	Stall conditions changed of each CF	Stall conditions changed of each column family
RocksDB - raft	Get operations	The count of get operations
RocksDB - raft	Get duration	The time consumed when executing get operation
RocksDB - raft	Seek operations	The count of seek operations
RocksDB - raft	Seek duration	The time consumed when executing seek operation
RocksDB - raft	Write operations	The count of write operations
RocksDB - raft	Write duration	The time consumed when executing write operation
RocksDB - raft	WAL sync operations	The count of WAL sync operations
RocksDB - raft	WAL sync duration	The time consumed when executing WAL sync operation
RocksDB - raft	Compaction operations	The count of compaction and flush operations
RocksDB - raft	Compaction duration	The time consumed when executing compaction and flush operation
RocksDB - raft	SST read duration	The time consumed when reading SST files
RocksDB - raft	Write stall duration	The time which is caused by write stall	It should be `0` in normal case.
RocksDB - raft	Memtable size	The memtable size of each column family
RocksDB - raft	Memtable hit	The hit rate of memtable
RocksDB - raft	Block cache size	The block cache size of each column family
RocksDB - raft	Block cache hit	The hit rate of block cache
RocksDB - raft	Block cache flow	The flow of different kinds of block cache operations
RocksDB - raft	Block cache operations	The count of different kinds of block cache operations
RocksDB - raft	Keys flow	The flow of different kinds of operations on keys
RocksDB - raft	Total keys	The count of keys in each column family
RocksDB - raft	Read flow	The flow of different kinds of read operations
RocksDB - raft	Bytes / Read	The bytes per read
RocksDB - raft	Write flow	The flow of different kinds of write operations
RocksDB - raft	Bytes / Write	The bytes per write
RocksDB - raft	Compaction flow	The flow of different kinds of compaction operations
RocksDB - raft	Compaction pending Bytes	The pending bytes when executing compaction
RocksDB - raft	Read amplification	The read amplification in each TiKV instance
RocksDB - raft	Compression ratio	The compression ratio of each level
RocksDB - raft	Number of snapshots	The number of snapshot of each TiKV instance
RocksDB - raft	Oldest snapshots duration	The time that the oldest unreleased snapshot survivals
RocksDB - raft	Number files at each level	The number of SST files for different column families in each level
RocksDB - raft	Ingest SST duration seconds	The time consumed when ingesting SST files
RocksDB - raft	Stall conditions changed of each CF	Stall conditions changed of each column family
gRPC	gRPC message count	The count of different kinds of gRPC message
gRPC	gRPC message failed	The count of different kinds of gRPC message which is failed
gRPC	99% gRPC message duration	The execution time of gRPC message
gRPC	gRPC GC message count	The count of gRPC GC message
gRPC	99% gRPC KV GC message duration	The execution time of gRPC GC message
PD	PD requests	The count of requests that TiKV sends to PD
PD	PD request duration (average)	The time consumed by requests that TiKV sends to PD
PD	PD heartbeats	The total number of PD heartbeat messages
PD	PD validate peers	The total number of peers validated by the PD worker
